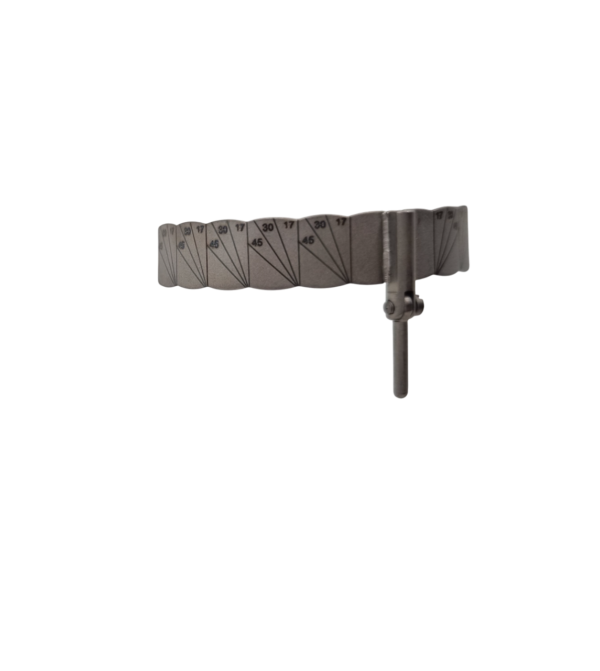

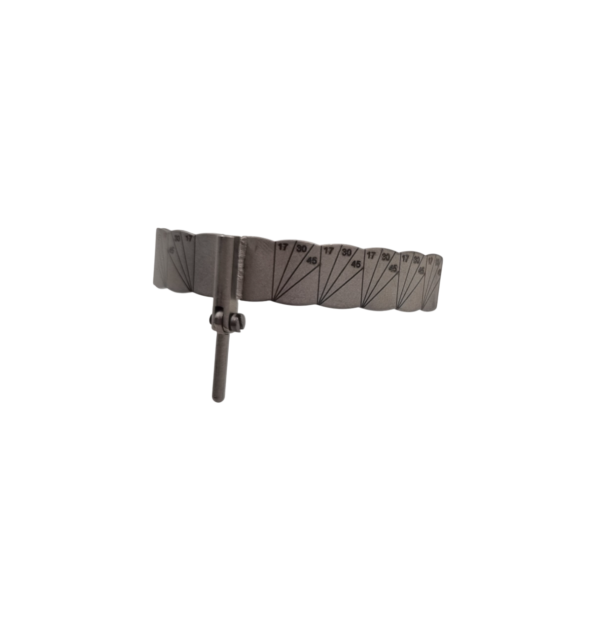

Universal Guide for All on 4/5/6 cases. Single universal guide for both Maxilla and Mandible.
The Guide is placed into a 2mm osteotomy that is made in the midline position of the maxilla or mandible and the band is contoured to follow the arch of the opposing arch.
The Guide also assists in retracting the tongue in mandibular cases. The vertical lines on the Guide are used as a reference for placing parallel anterior implants and for drilling at the correct angulation to place posterior implants, which should not be greater than 45°.
Going with the drill from one corner to the other corner of the rectangle formed by two lines, an angulation of approximately 30° is obtained.
Universal Guide for All on 4/5/6 cases. Single universal guide for both Maxilla and Mandible.
The Guide is placed into a 2mm osteotomy that is made in the midline position of the maxilla or mandible and the band is contoured to follow the arch of the opposing arch.
The Guide also assists in retracting the tongue in mandibular cases. The vertical lines on the Guide are used as a reference for placing parallel anterior implants and for drilling at the correct angulation to place posterior implants, which should not be greater than 45°.
Going with the drill from one corner to the other corner of the rectangle formed by two lines, an angulation of approximately 30° is obtained.
Design:
We have given Straight line at 7mm distance from each other (Indicating the axis of all the Tooth). From Molar region with have put different degrees viz. 17º, 30º, 45º as per the degrees of abutments available in market.
Use:
An incision is made for flap elevation. A 2-mm twist drill is then used to make a 10-mm osteotomy in the midline.(Center of the Maxilla or Mandible ridge). Place the Guide in the osteotomy site. Drill 2 Straight (Incisor Region) and 2 Angled to avoid the sinus and to keep the implant in solid bone as required.
Material:
Non Magnetic Stainless Steel
Flexible/Malleable (Can be adjusted to any size of the ridge)
